Overview

To avoid collecting duplicates, I created a Catalog of my glass flower frog collection. Annotations note dimensions, and characteristics such as whether a bottom is flat, concave, or convex. Photos from multiple angles present the shape.

Over my first year of collecting I purchased a few near-duplicates that only varied a little in size or shape, yet I assumed they came from different moulds. It was only after I learned how glass flower frogs were made that I understood that such variations are possible within a single product.

Also, I was curious about the broken glass found around the holes on the bottom of most glass flower frogs. eBay sellers occasionally point this out as a defect, but it's almost always present so I knew that couldn't be the case.

This is the manufacturing process based on the Cambridge Patent:

1. Molten glass is poured into the mould.

2. A plunger with multiple conical shafts is inserted through the molten glass to form the holes. This action also expands the molten glass out to the sides of the mould to give the sides of the block their shape (upper illustration).

3. The plunger and mould are removed.

4. The block is inverted and suspended (lower illustration).

5. The glass still molten, gravity causes the form to fall or sag. This forms the shape of the top of the block, which can vary depending on how far the molten glass falls. Other variances may occur such as the bottom of the block becoming concave, and the sides of the block retracting from the shape of the mould.

6. The block remains inverted and suspended until it cools and the glass hardens.

7. Excess glass that was pushed out of the bottom of the mould by the conical shafts of the plunger is broken off, leaving the rough edges around the bottoms of the holes.

You will more fully understand the process as you review the illustrations, photos, and text, below.

Peter Christensen
Peter@MyFlowerFrogs.com


Terminology Trivia

Mold vs. Mould:  Mold is the American spelling and mould is the British spelling. The latter has become prevalent among glass collectors.

Block:  Block is the common term used by collectors for flower frogs that are set in water in a bowl with the flower stems placed in the holes. Blocks are typically non-figural, often round in shape, and a far cry from the ubiquitous daintily-clad ladies so popular among collectors.

Blocks do include relatively low-lying animal shapes, however. Westmoreland catalogs use the term Flower Block even when the block takes on the shape of a turtle.

Cambridge catalogs use the terms Flower Arranger and Flower Block, and the Cambridge mould patent uses the terms Block and Flower Holder.

Lastly, since blocks are set in bowls or even vases, they are called Inserts by some manufacturers.


Cambridge Patent

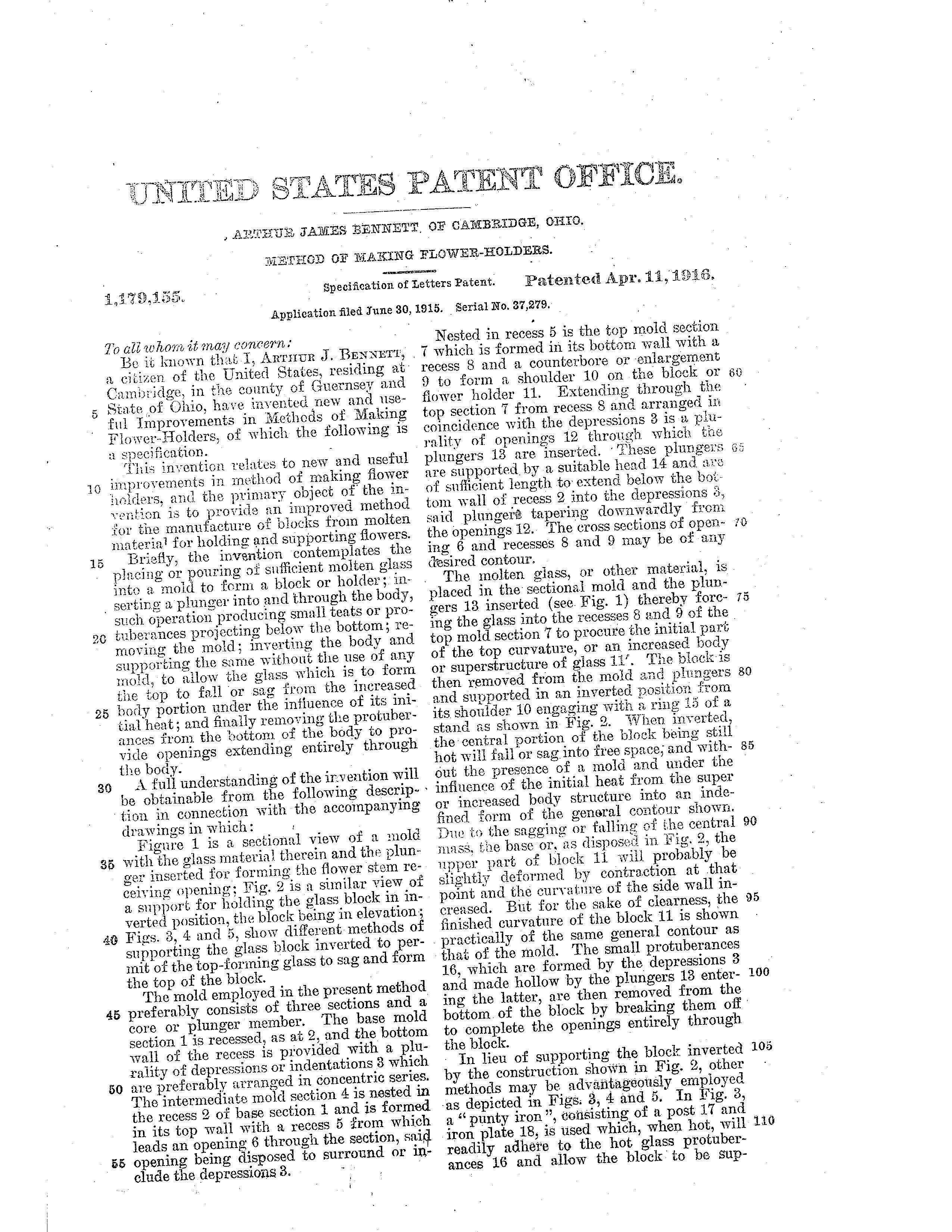

The patent, copied from the United States Patent and Trademark Office database, provides a detailed explanation of the manufacturing process:  Cambridge Patent PDF

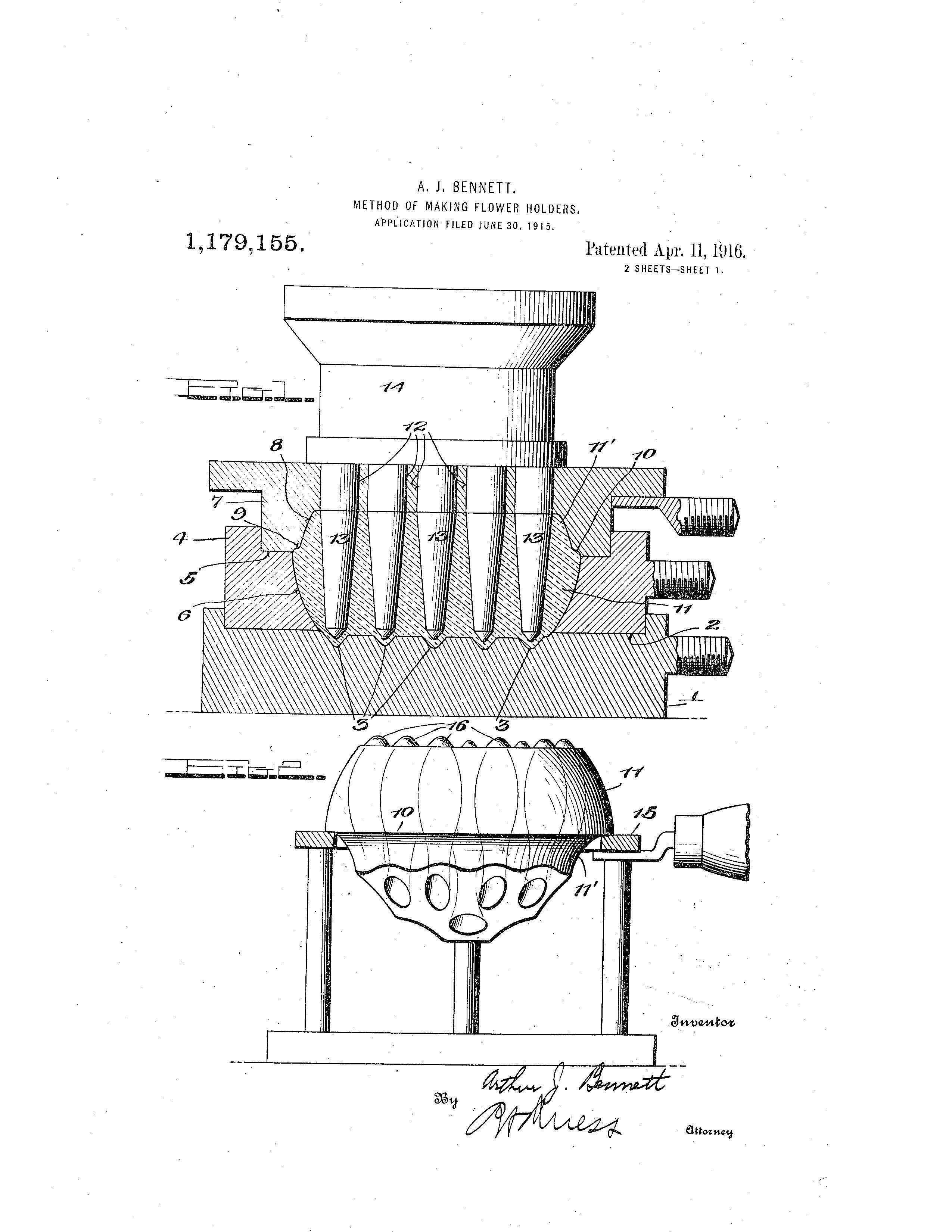

The upper illustration shows the complete mould with the plunger inserted; the bottom illustration shows the inverted block without the mould.

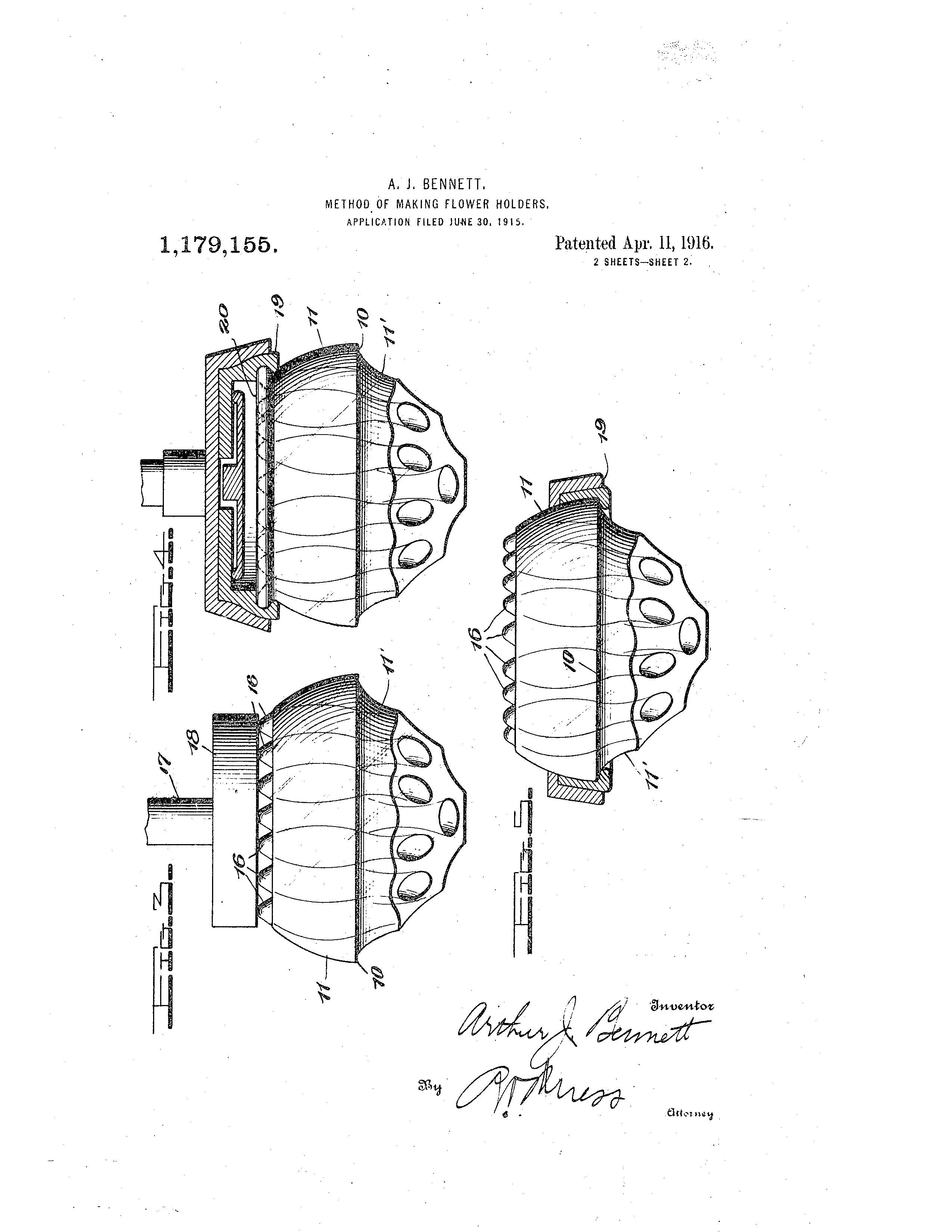

This illustration shows three different mechanisms for holding the inverted block. Note that the glass has fallen, creating a peak on the top of the block.

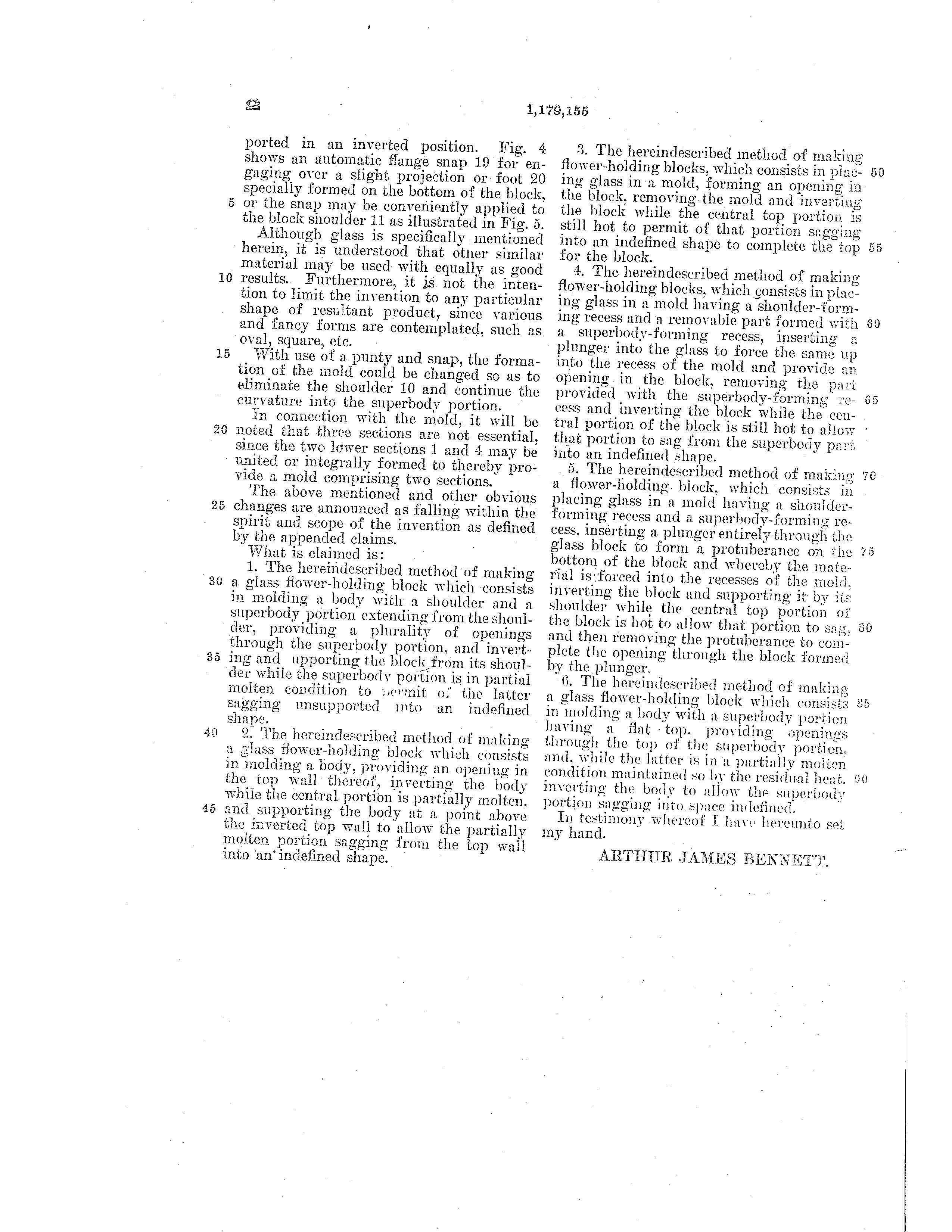

Read the text:  Cambridge Patent PDF

Westmoreland Mould Photographs

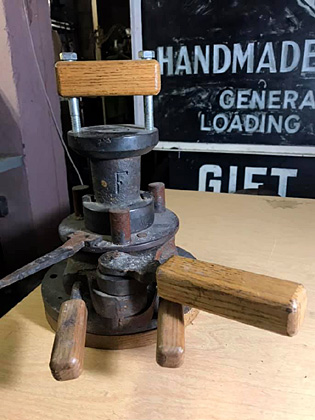

This Westmoreland Glass Company mould belongs to Greg A. Jennings, who acquired it from Charles West Wilson, grandson of one of the co-founders of Westmoreland.

The wood handles were added for ease in demonstrating how the mould works, and are not original.

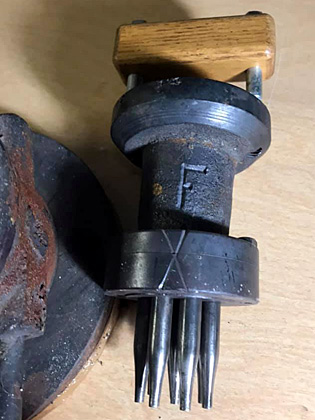

The plunger is inserted through the molten glass to form the holes.

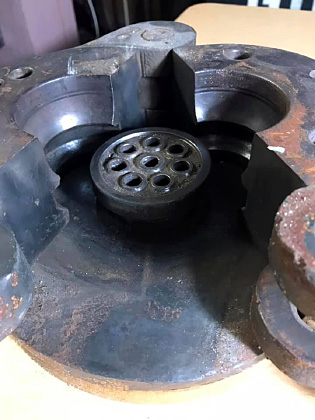

The open mould

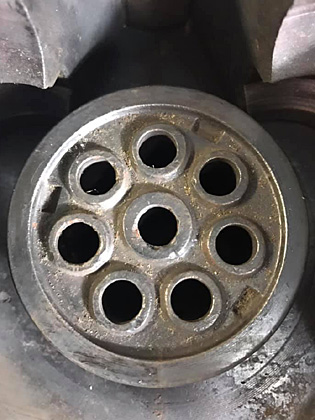

The familiar shape of a Westmoreland block bottom with rectangular feet

This Westmoreland flower frog is a perfect match to the mould shown above. You can clearly see that the bottoms of the conical shafts of the plunger were smaller than the holes in the mould. This explains the seepage of the glass around the conical shafts, which is broken off after the block has cooled.
